Caractéristiques
· Proven durable T-beam arm aluminum frame construction
· Excellent operation field for vision.
· Regenerative hydraulic valving for optional arm speed
· Superior arm-slide bearing for extended service life
· Vulcanized rubber pads design, economically.
Remarque
1.Obtenez la capacité réelle du chariot élévateur et des accessoires auprès du fabricant du chariot élévateur.
2. Deux ensembles de circuit d'huile supplémentaire et de vanne magnétique sur le chariot élévateur.
3. La plage des bras ouverts est l'espace entre l'extrémité des deux bras.
4.Arm thickness "C" is the space size required for practical work, is different from the actual arm plate thickness
5. S'il vous plaît contacter les ventes de HUAMAI
Caractéristiques
Type | Capacity @Load Center /mm | Classe | Opening Range /mm | Arm Height A/mm | Arm Length B/mm | Frame Width D/mm | Arm Thick- ness C/mm | Overall Height H/mm | Weight /kg | Effective Thick- ness /mm |
MCS15D- 001A | 1400@ 500 | II | 420-1570 | 455 | 955 | 865 | 55 | 665 | 465 | 175 |
MCS15D- 002A | 1400@ 500 | II | 520-1720 | 415 | 1220 | 865 | 70 | 665 | 485 | 195 |
MCS15D- 003A | 1900@ 500 | II | 520-1750 | 600 | 1015 | 940 | 75 | 665 | 475 | 175 |
MCS15D- 004A | 1900@ 500 | II | 560-1760 | 455 | 955 | 940 | 55 | 665 | 475 | 175 |
MCS15D- 005A | 1900@ 500 | II | 520-1720 | 415 | 1220 | 940 | 70 | 665 | 495 | 195 |
MCS15D- 006A | 1900@ 500 | II | 560-1800 | 460 | 750 | 940 | 55 | 665 | 356 | 180 |
MCS15D- 007A | 1900@ 500 | II | 550-1800 | 460 | 905 | 940 | 55 | 665 | 386 | 180 |
MCS15D- 008B | 2700@ 500 | III | 600-1950 | 455 | 750 | 1015 | 60 | 730 | 484 | 215 |
MCS15D- 009A | 2700@ 500 | II | 600-1900 | 455 | 955 | 1015 | 60 | 730 | 542 | 205 |
MCS15D- 009B | 2700@ 500 | III | 600-1900 | 455 | 955 | 1015 | 60 | 730 | 543 | 215 |
MCS15D- 010A | 2700@ 500 | II | 595-1940 | 455 | 1160 | 1015 | 65 | 730 | 603 | 205 |
MCS15D- 010B | 2700@ 500 | III | 595-1940 | 455 | 1160 | 1015 | 65 | 730 | 604 | 215 |
Débit et pression hydraulique
Modèle | Min. Hydraulic Flow (L/min) | Rec. Hydraulic Flow (L/min) | Max. Hydraulic Flow (L/min) | Min. Hydraulic Pressure (Bar) | Max. Hydraulic Pressure (Bar) |
MCS20D | 15 | 25 | 25 | 35 | 160 |
MCS30D | 15 | 40 | 40 | 35 | 160 |
Les options
· Clamp arm height and large extension
· Left and right clip arm independent movement type
· 180 degree rotation stopping mechanism
Application
Efficiently and economically handle nearly any types of paper carton, wooden carton, metal carton and baled products . Including tobacco, newsprint, chemical fiber, workshop and port. High efficiency and economy to handle in without work platform
Détails rapides
Lieu d'origine: Fujian, Chine (continentale)
Nom de marque: HUAMAI
Model Number: MCS15D- 002A

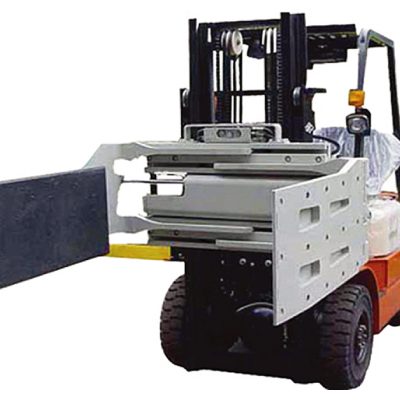

Product Name: forklift attachments sideshifting revolving multi-purpose clamp
Type: MCS15D- 002A
Classe de montage: II
Opening Range: 520-1720
Arm Height A/mm: 415mm
Arm Length B/mm: 1220mm
Arm Thick- ness C/mm: 70mm
Weight: 485KG
Effective Thickness(mm): 195mm
Overall Height H/mm: 665mm
